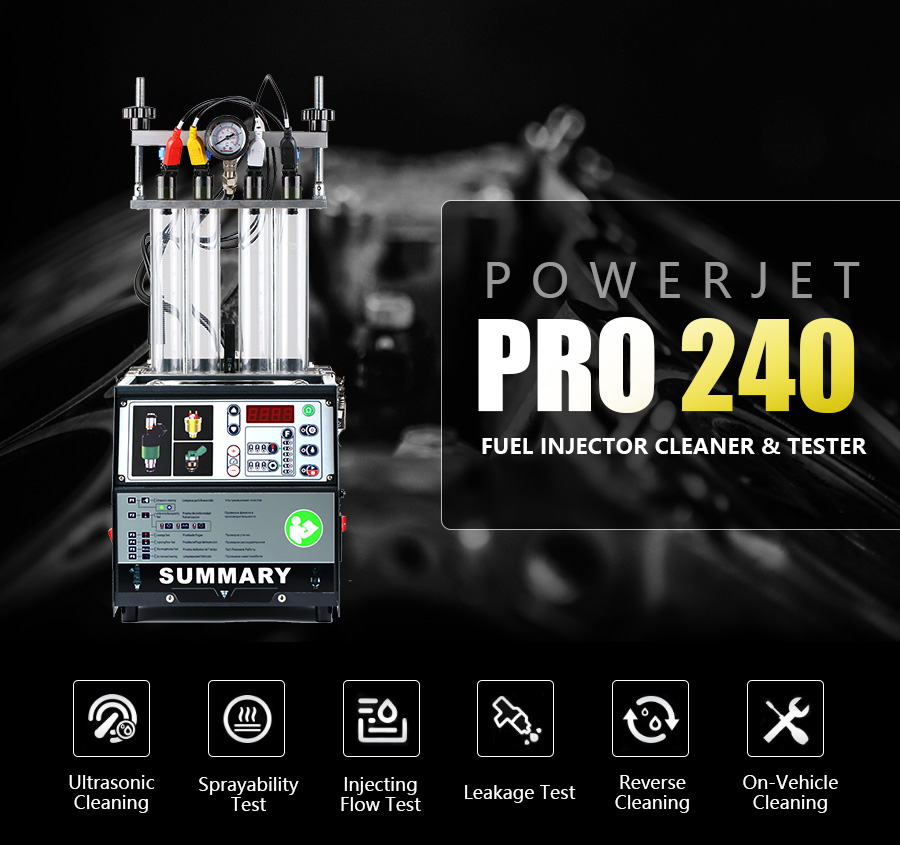

[4-Cylinder] SUMMARY POWERJET PRO 240 Injector Cleaner & Tester Machine Kit Support Petrol Vehicles Motorcycle 4-Cylinder 110V 220V Optional

[4-Cylinder] SUMMARY POWERJET PRO 240 Injector Cleaner & Tester Machine Kit Support Petrol Vehicles Motorcycle 4-Cylinder 110V 220V Optional

Top Reasons Why You Need SUMMARY POWERJET PRO 240?


• Fashionable and attractive appearance with the designers' ideas,
• Support for optional spare parts purchase,
• Support for measuring resistance,
• Support for adjustable parameters.
•

Product Introduction:

SUMMARY POWERJET PRO 240 injector cleaner & tester uses ultrasonic technology and microprocessor fuel pressure control cleaning and testing technology to quickly remove carbon from the vehicle fuel system, and test leaking, uniformity, inbreath of injectors, so that the injectors can discharge fluid more quickly.

SUMMARY POWERJET PRO 240 injector cleaner & tester fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors. It also can be used for cleaning and testing four injectors at the same time.


Product Features:

Resistance test
Support the resistance measurement of the fuel injector to know the performance status of the fuel injector.

Quick disassembly
The special structure design makes the disassembly and assembly of the fuel separator more efficient and quicker.

Easy to control
The unique panel design makes the operation simple and easy to understand, making the operation more convenient and efficient.

Small and lightweight
The device is very small and light and easy to move. It is currently the smallest full-function test equipment for GDI injectors.

Strong cleaning
The machine has a strong ultrasonic cleaning ability, which can remove carbon deposits and impurities on the fuel injection nozzle to the greatest extent.

Humanization design
Adopting humanization design can make the system pressure fast restored to the default values.

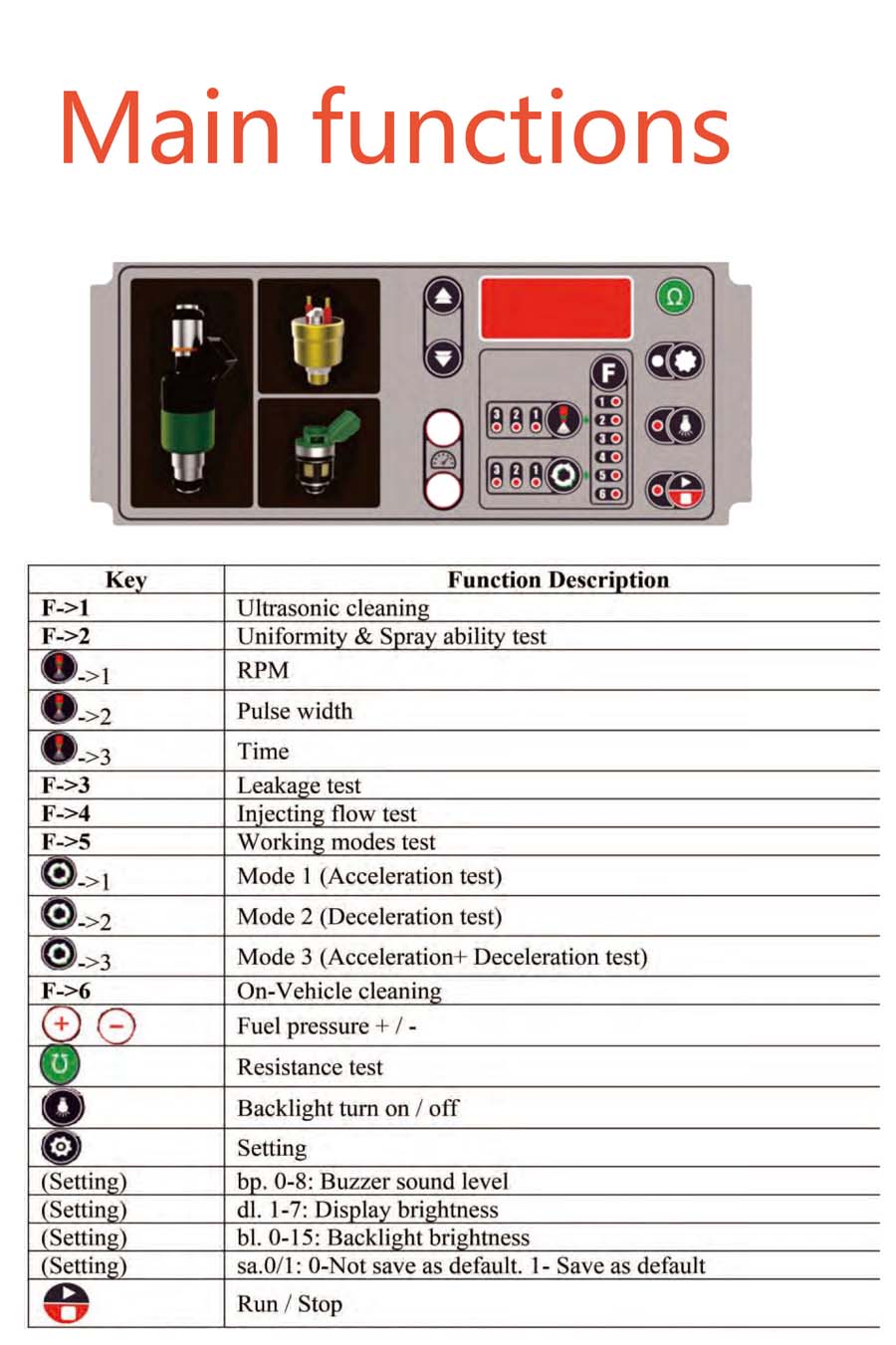

Product Functions:


• Resistance test
• To test the resistance of fuel injector
• Ultrasonic cleaning
• To clean injectors to remove the carbon deposition on them completely.
• Uniformity test/Sprayability test
• To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.
• Leakage test
• To test the sealing and dribbling conditions of injectors under system pressure.
• On-Vehicle cleaning
• Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.
• Working modes test
• To test injectors under different working conditions.

Why do we have to clean injectors？

When we turned off the engine suddenly, the gasoline which have been spray out can not be recycled. It would attached on the injector and combustion chamber walls. Gasoline is easy to volatile, but wax and varnish stayed. Heat these wax and varnish day after day,they will change into hard coke. The hard coke will be produced more quickly and more thickly when engine work with poor quality fuel.

Tips: Do not get any cleaning solvent on the outside of the vehicle, as this will damage the paint. A heavily clogged fuel injector may not allow enough cleaner to pass through during a routine cleaning, so it will not be adequately cleaned. Additional cleaning may be needed to clear heavy deposits.

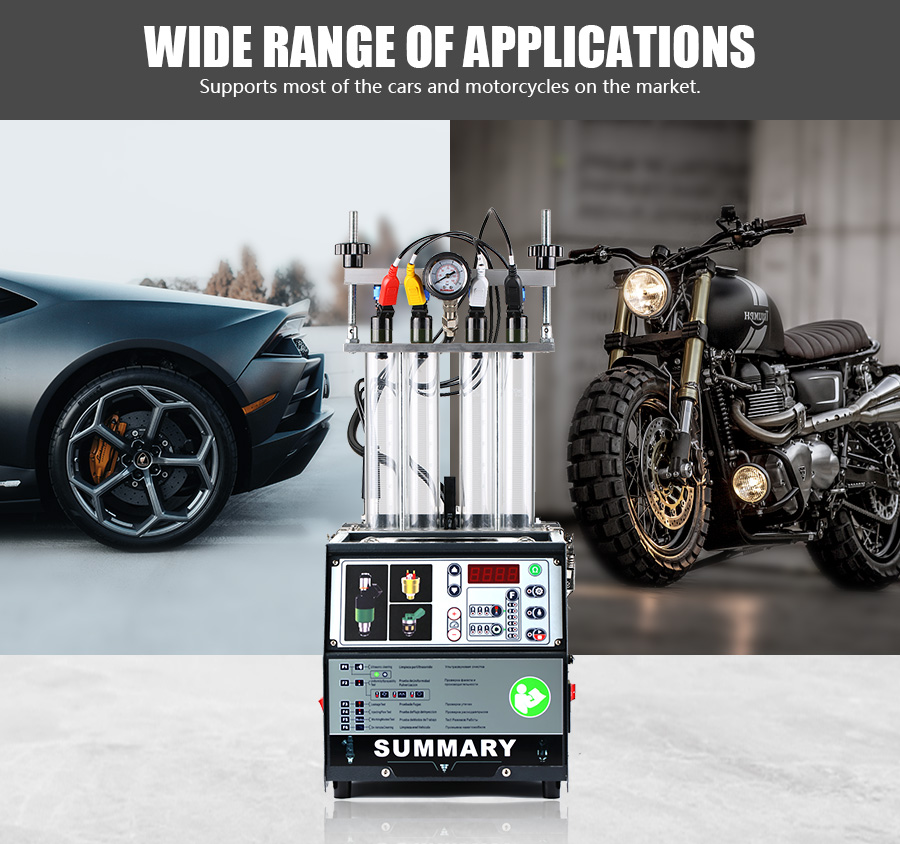

Wide Vehicle Coverage:

SUMMARY POWERJET PRO 240 supports for 99% of vehicle models,  and it fits for most petrol cars and motorcycles injectors, but NOT for diesel injectors.

Support for Audi，for Australia Ford，for Benz，for BMW，for Brilliance，for Chevrolet，for Chevy，for Chrysler，for Citroen，for Dacia，for Dadi，for Daewo，for Daihatsu，for Demo，for Fiat，for Ford，for GM，for Holden，for Honda，for Hyundai，for Isuzu，for Jaguar，for Kia，for Lancia，for Land Rover，for Mahindra，for Maruti，for Mazda，for Mitsubish，for Nissan，for Opel，for Peugeot，for Porsche，for Renault，for Romeo，for Rover，for Saab，for Seat，for Skoda，for Smart，for Subaru，for Suzuki，for Tata，for Toyota，for Volvo，for VW，for Yamaha,etc.

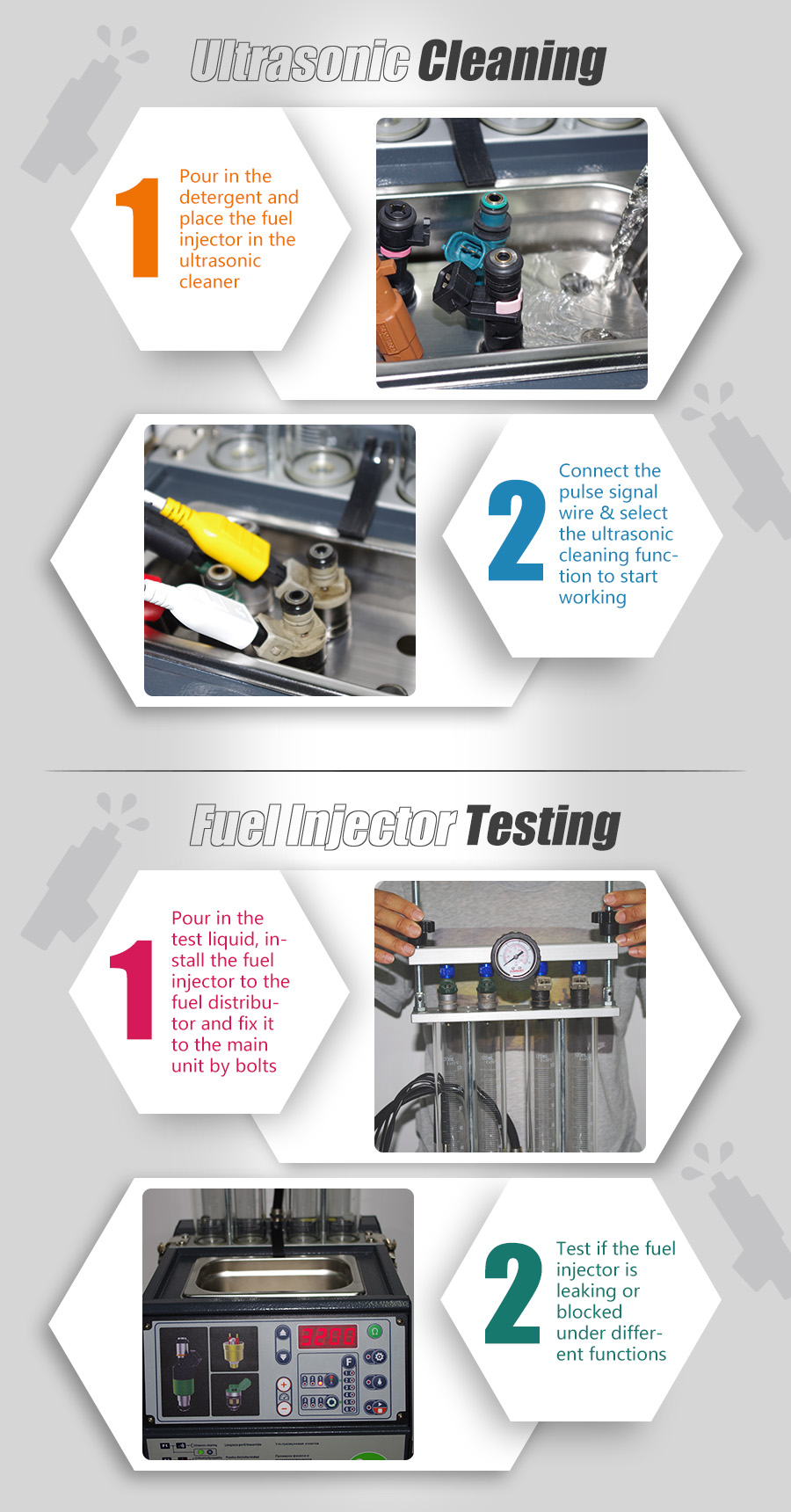

Easy Operation:

1. Clean injector's outside with gasoline or cleaning liquid before turning on the machine
2. Putting injectors in ultrasonic bathtub after the outside of injector is free of dirt.
3. Turn on ultrasonic system, allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4. Fix injectors on the machine
5. Test injectors for resistance, shorts, and current draw
6. Perform leak test, spray pattern, and flow rate testing on flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.

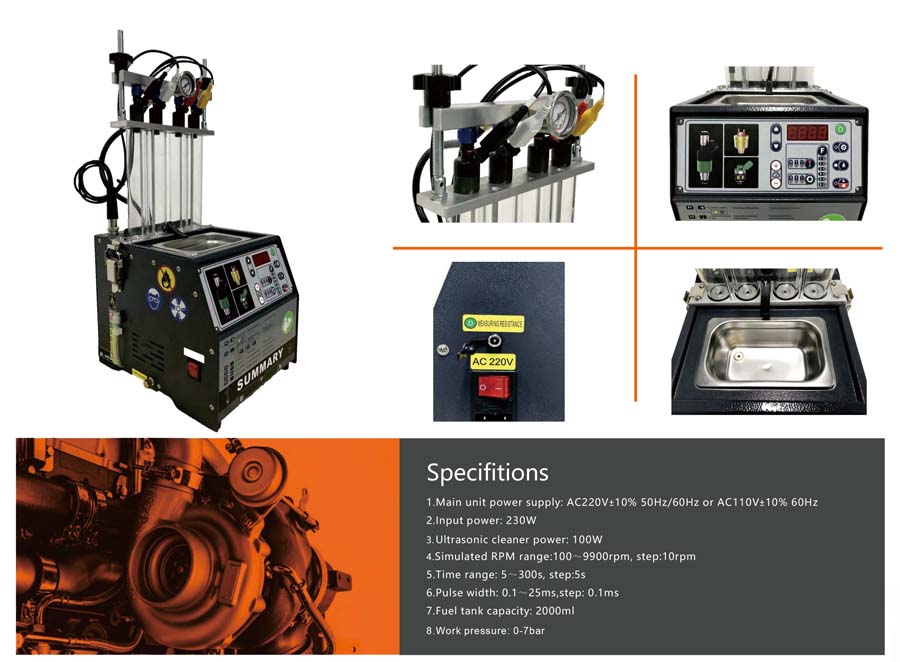

Product Specifications:


Main unit power supply	AC110V±10% 60Hz
Input power	230W
Ultrasonic cleaner power	100W
Simulated RPM range	100～9900rpm, step:10rpm
Time range	5～300s, step:5s
Pulse width	0.1～25ms,step: 0.1ms
Fuel tank capacity	2000ml
Work pressure	0-7bar

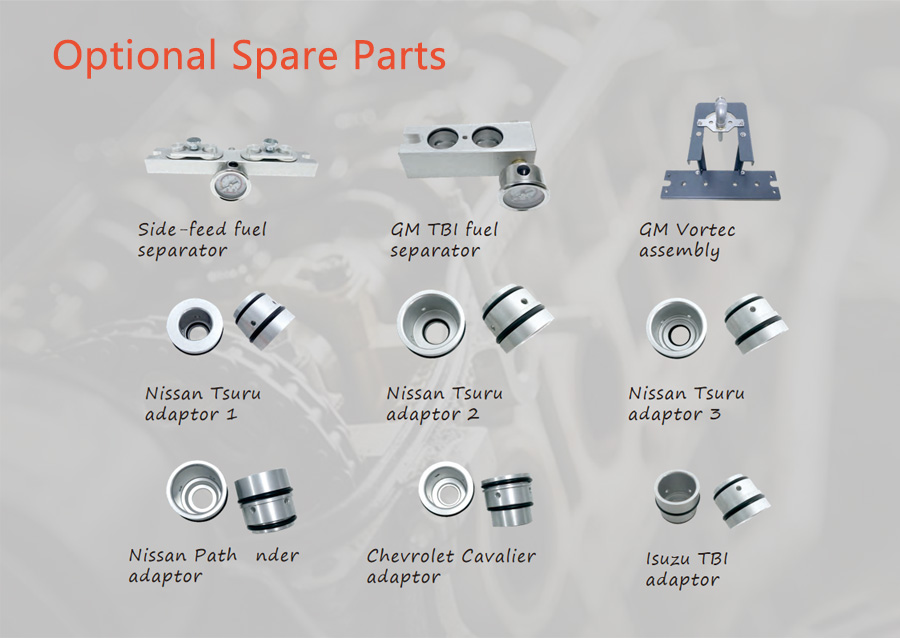

Optional Spare Parts

You may choose the optional spare parts below which are NOT included in the standard configuration.


Summary Product Comparison:


Model	PowerJET GDI S4	PowerJET Pro 260	PowerJET Pro 240	Summary machine can support all kinds of injector cleaning and testing
4 cylinder series
size	355*350*380mm	375*405*510mm	355*350*380mm
volume	0.047 m3	0.077 m3	0.047 m3
weight	12KG	17KG	11KG	Votec injector:
Support low resistance injector (1-2Ω) test and cleaning function	Yes	Yes	Yes
Support Top-feed fuel injector test & cleaning	Yes	Yes	Yes	Top-feed fuel injector:
Support Side-feed fuel injector test & cleaning (With Optional Spare parts)	Yes( standard configuration does NOT support.)	Yes( standard configuration does NOT support.)	Yes( standard configuration does NOT support.)
Support GDI  fuel injector test & cleaning	Yes	No	No	Side-feed fuel injector:
Support GM TBI injector test & cleaning (With Optional Spare parts)	Yes( standard configuration does NOT support.)	Yes( standard configuration does NOT support.)	Yes( standard configuration does NOT support.)
Support Votec injector test & cleaning (With Optional Spare parts)	Yes( standard configuration does NOT support.)	Yes( standard configuration does NOT support.)	Yes( standard configuration does NOT support.)	GDI fuel injector:(Only PowerJET GDI S4)
Injector resistance  testing function	Yes	Yes	Yes
RPM adjustable range:100～9900rpm,	Yes	Yes	Yes	GM TBI injector:
Pulse width adjustable : 0.1～25ms,	Yes	Yes	Yes

Package Includes:

1pc x Main pulse cables
1pc x Fuel separator
1pc x User manual
1pc x Fuel separator stopper
1pc x Lock handwheel
1pc x Power cable
1pc x Pulse signal cable
1pc x Main adaptor
1pc x Vice adaptor
1pc x Injector shims
1pc x Resistance test cable
1pc x O-ring
