Product Description
Product Introduction:

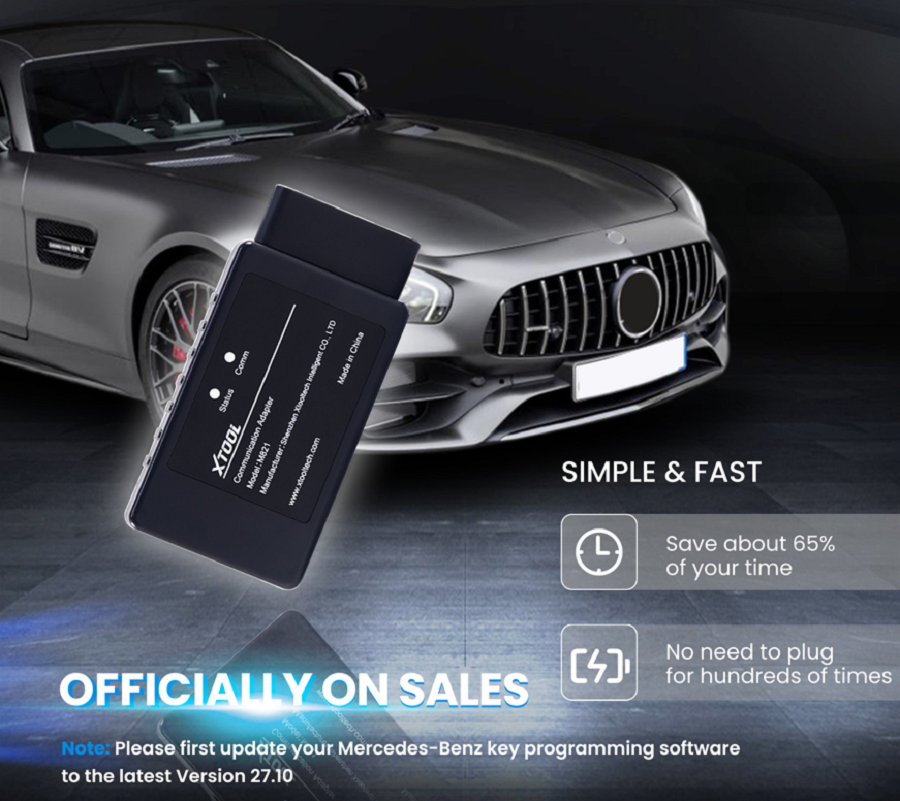

XTOOL M821 Mercedes-Benz all keys lost communication adapter is designed to finish and optimize all key lost programming for multiple Mercedes-Benz modules. With XTOOL M821 Adapter, you can save up to 65% of the calculation time during the process, It can also save you from plugging the key emulator in and out for hundreds of times.
Please note that XTOOL M821 Adapter needs to be used with advanced XTOOL Key Programming devices, such as X100 Pad3/X100 Max and KC501 Key Programmer.
Product Functions:
1. OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables.
*Caution: Don't connect to the OBD port on the car directly.
2. Status Light: Shows the power status of the adapter. When the red lights are on, it indicates the power is on.
3. Comm Light: Shows the communication status of the adapter. When the blue lights are on, it indicates the adapter is communicating with the tablet.
4. DB15 port: Used to connect to the main cable of XTOOL tablets.
*Note: Before being connected to the M821 adapter, please disconnect the OBD2-16 connector from the main cable.
Connection Method：
1. Connect KC501 to the device via USB.
2. Connect Mercedes-Benz IR emulator onto KC501.
3. Disconnect the OBD2 connector from the main cable, then connect the device (or the VCI box) with the M821 adapter using the main cable.
4. Connect 12V power supply onto the main cable.
5. Connect the EIS/EZS module with the M821 adapter using the J1K02_BENZ cable. Please check the device for connection details.
*Note: 1. Please check the pictures in the device when connecting M821 adapter and EIS/EZS module via J1K02_BENZ cable.
2. The Mercedes-Benz IR emulator should be plugged into the slot of the module when operating.
*Note: For devices that has a VCI box, connect the M821 adapter with the VCI box using the main cable, and keep the VCI box connected with the device via Bluetooth.
Package Includes:
1pc x M821 Mercedes-Benz AKL Adapter
1pc x J1K02_BENZ Wiring Harness
1pc x M821 Quick Guide
